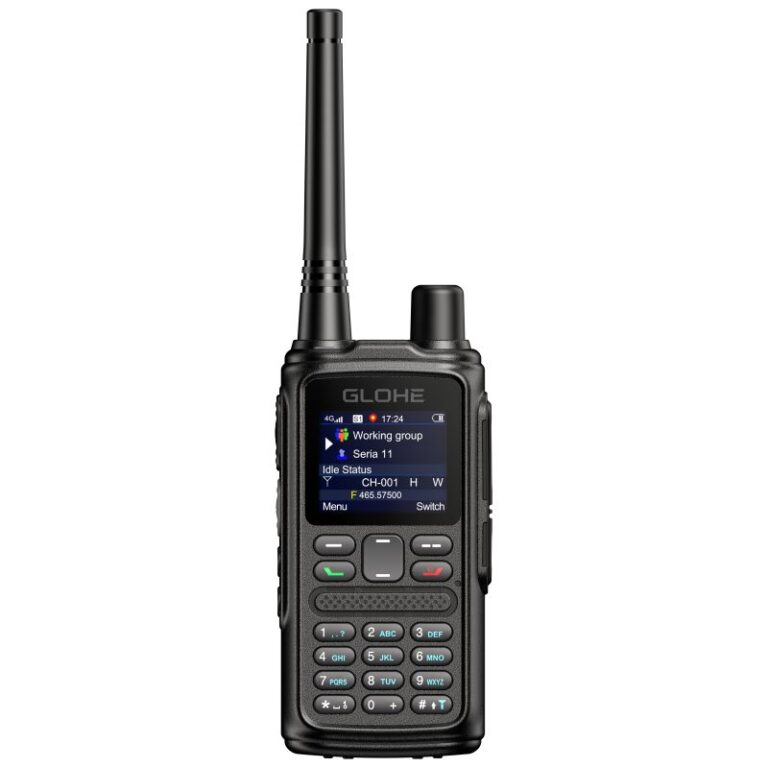

The AP200C combines LTE PoC communication and traditional analog radio technology in a single device. Designed for organizations transitioning from conventional radio systems to nationwide LTE communication, it delivers seamless cross-network communication and operational flexibility.
The AP200C is a professional hybrid communication device that integrates LTE Push-to-Talk technology with analog radio functionality.
Organizations can continue using existing analog radio infrastructure while simultaneously benefiting from nationwide LTE communication.
With cross-network communication capability, GPS support, dual SIM cards and REALPTT platform compatibility, the AP200C is ideal for security companies, transportation fleets, logistics operations and industrial users seeking a gradual migration path from traditional radio systems.
| Public Network | |||
| Equipment Name | AP200C | ||
| Working Voltage | DC:3.7V | ||
| Network System | LTE-FDD/LTE-TDD | ||
| Frequency Range CAT.1 | Europe&Southeast Asia： FDD：B1/B3/B5/B7/B8/B20/B28 TDD：B38/B40/B41America&Australia B2/B3/B4/B5/B7/B8/B28/B66 | ||
| Maximum Transmit Power | 1、TDD-LTE:Power Class 3(23+/-2dBm) 2、FDD-LTE:Power Class 3(23+/-2dBm) | ||
| Standard Power Consumption | Standby Current:80-120mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Average Operating Current:220mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Max Current:800mA@RX-104dBm | ||
| Receiving Sensitivity | LTE-FDD/LTE-TDD:-94dBm(10M) | ||
| Battery | Polymer Lithium Battery 4000mAh | ||
| Charge Mode | USB TYPE-C Direct Charger/Seat Charger (Optional) | ||
| Antenna | External Dual Mode Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 210g | ||
| Size: Length*Width*Thickness(mm) | 110x58x38(Without Antenna) | ||
| SIM Card | SIM1:Nano Card; SIM2:Nano Card | ||
| Analog | |||
| Channel Capacity | 128 | ||
| Channel Spacing | 25kHz/12.5KHz | ||
| Working Voltage | DC7.5V | ||
| Frequency Range | 400-470MHz | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 1000mW |
| Reference Sensitivity | Better than -121dBm | SNR | ≥45dB |
| Reference Sensitivity | Better than -121dBm | Audio Distortion | ≤5% |
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB |
| Audio Response | ≤+2dB & ≥-10dB | ||
| Transmitter | |||
| Transmitting Power | ≤3W | Frequency Stability | +/-2.5ppm |
| Transmitting SNR | ≥40dB | Maximum Frequency Offset | ≤5KHz |
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB |
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% |
| Main Function | |||
| POC | Analog | ||
| 1.7-inch Color Screen + 20 Operating Buttons | Supports One-Button Frequency Pairing | ||
| Polymer Lithium Battery | Multi-Function Keypad Operation (20) | ||
| GPS(Optional) | Wide/Narrow Band Switching | ||
| Numeric Numbering Single Call Selection | High /Low Power Switching | ||
| Multi-group Listening | Hand-Tuned Frequency | ||
| Multi-member Single Call | Scan | ||
| Local Platform Upgrade | Squelch Level Setting | ||
| Dialing Function | Support Voice Broadcasting | ||
| SOS | Power Saving | ||
| Intercom Prompt Sound Switch | QT/DQT | ||
| Key Lock | Receive Priority Setting | ||
| Battery Level Display/Low Battery Alert | Transit Mode (Analog To Public, Public To Analog) | ||
| Chime On Every Hour | Operating Modes: Channel/Frequency/Record Mode | ||
| Direct keypad Numeric Shortcut Single Call | Hand-tuned QT/DQT | ||
| Platform System:REALPTT | Frequency Offset | ||

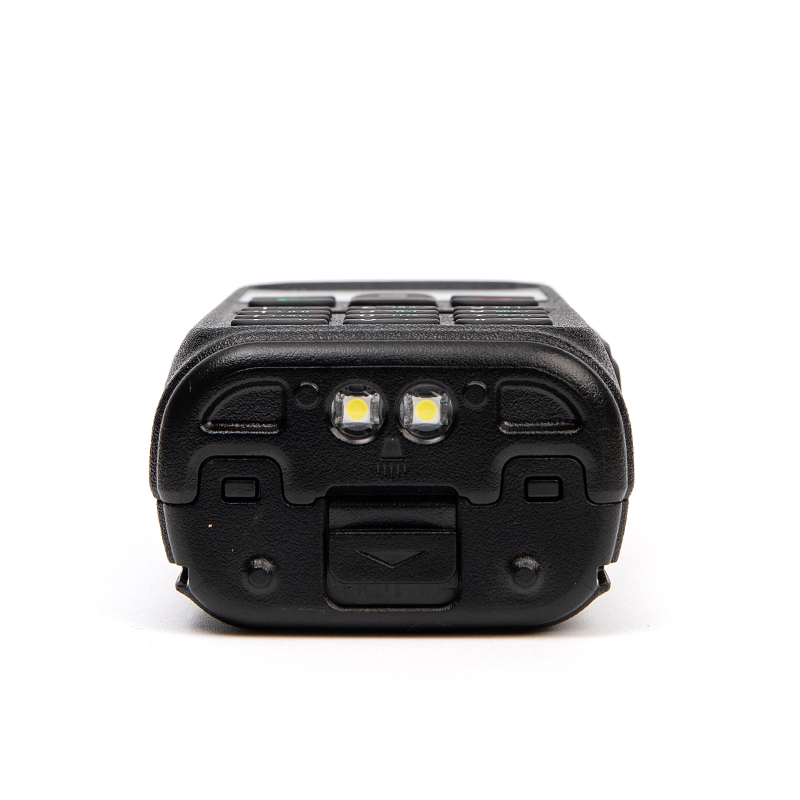

| Flashlight Function | Frequency Deviation | ||
| Channel Name Edit Channel Storage 128 Channels Launch Time Limit | |||

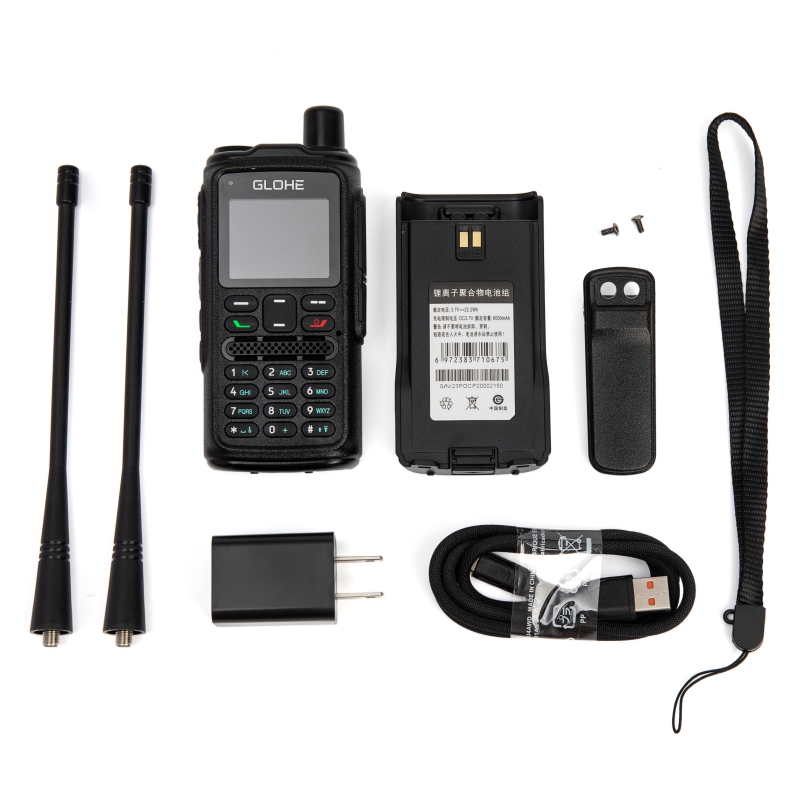

1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
