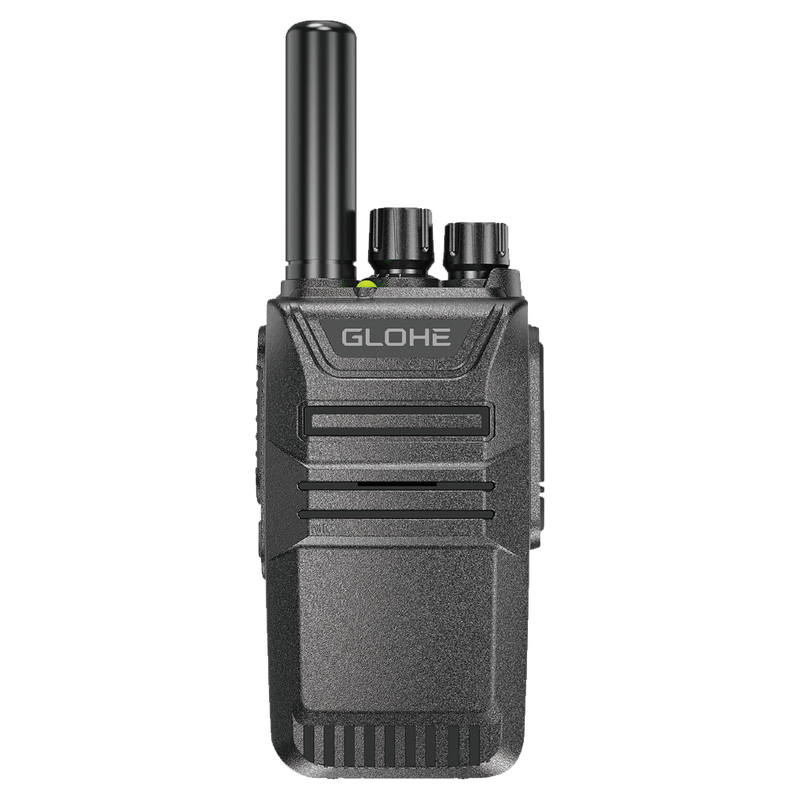

The GLOHE A214 is a compact 16-channel UHF analog two-way radio designed for reliable everyday business communication. It features up to 3W transmit power, a 1500mAh lithium battery, 10-day standby, VOX, channel scanning, adjustable noise reduction and English voice prompts. OEM and ODM customization is available for distributors and business customers.
| A214 Technical Specification | |||
| Product Parameters | |||
| General | |||
| Model | A15 | ||
| Device Name | Handheld Fm Walkie-Talkie | ||
| Channel Capacity | 16 | ||
| Channel Spacing | 25khz/12.5khz | ||
| Working Voltage | Dc4.2v | ||
| Frequency Range | Uhf | ||
| Standard Battery | 1500mah Lithium Battery | ||
| Antenna Impedance | 50ω | ||
| Working Temperature | -20℃ ~ +50℃ | ||
| Weight | 181g | ||
| Dimensions: h (Length) x w (Width) x d (Height) (Mm) | 98*58*34 (Excluding The Antenna) | ||
| Frequency Modulation Method | Same-Frequency Simplex Or Different-Frequency Simplex | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 500mw |
| Reference Sensitivity | Better Than-119 Dbm | Received Signal-To-Noise Ratio | ≥40db |
| Reference Sensitivity | Better Than-119 Dbm | Audio Distortion | ≤5% |
| Neighboring Path Selectivity | ≥65db | Common Channel Suppression | ≥-8 Db |
| Acoustic Frequency Response | ≤+2db & ≥-10db | Intermodulation | ≥55 Db |
| Transmitter | |||
| Transmitting Power | ≤3w | Frequency Stability | +/-2.5ppm |
| Transmission Signal-To-Noise Ratio | ≥40db | Maximum Frequency Deviation | ≤5khz |
| Emitting Stray Radiation | ≤7.5uw | Modulating Characteristic | +1db ~ -3db |
| Neighboring Channel Power | ≤-65db | Modulation Distortion | ≤5% |
| Main Function | |||
| Ultra-long standby time: 13 days | |||
| Boot notification sound | |||
| 16 Channels | |||
| English voice playback | |||
| Power Saving Feature | |||
| V0X Voice Control Function | |||
| Scan Function | |||
| Low voltage alert | |||
| Release Time Limit | |||
| Noise Reduction Level Setting | |||
| Frequency hopping feature (dual encryption for anti-cracking) | |||
| Non-standard analog sub音频 (QT)/Non-standard digital subaudio (DQT) | |||
| SK1 Side Key Customization | |||
| Simulated Subauditory (QT)/Digital Subauditory (DQT) | |||
| Timeout Timer (TOT) | |||
| Unlimited Copy | |||
| One-click frequency tuning |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 ×usb charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
