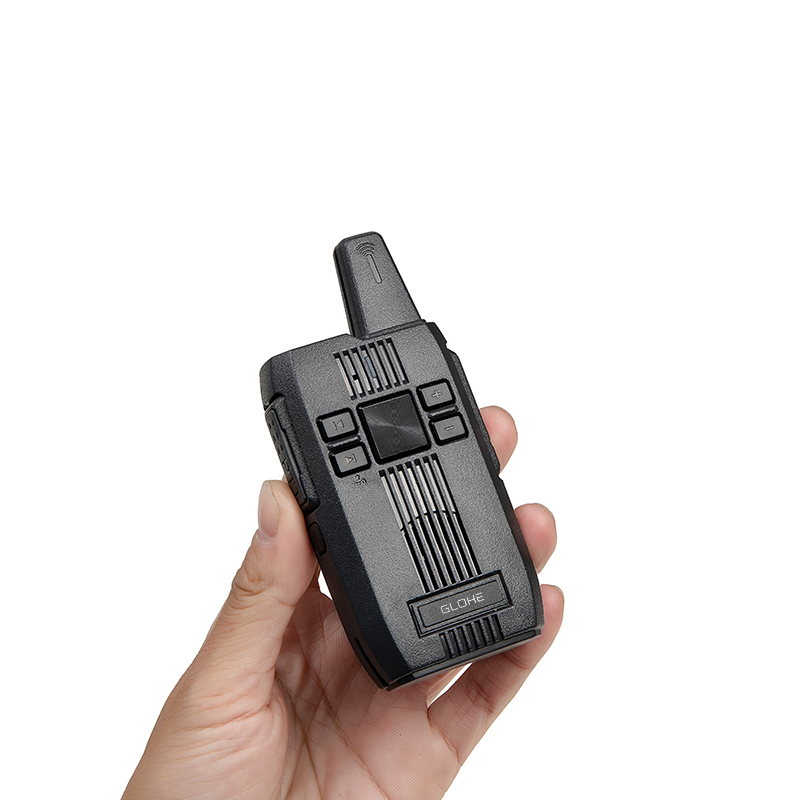

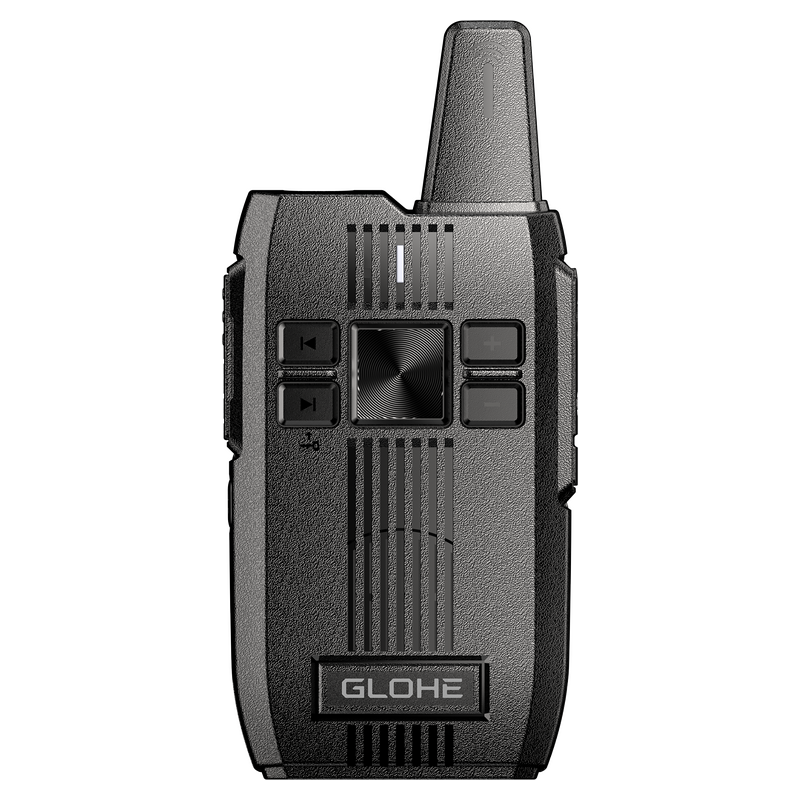

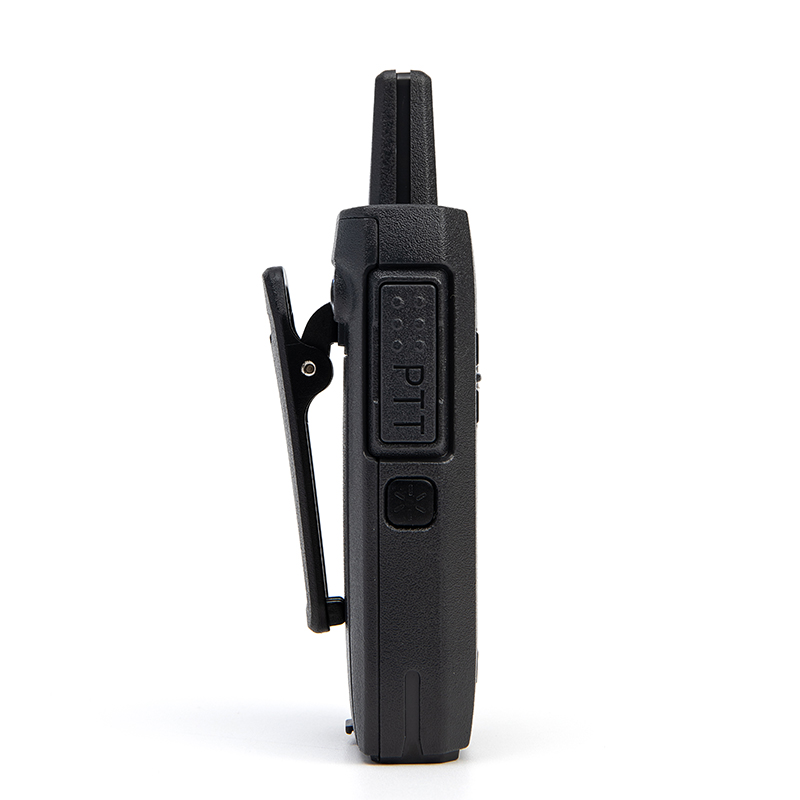

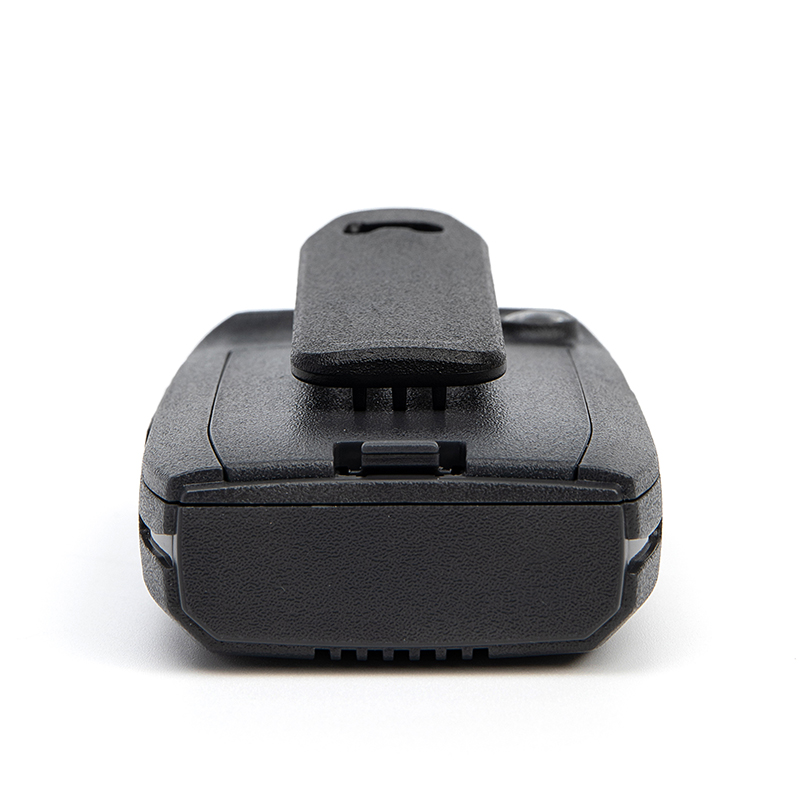

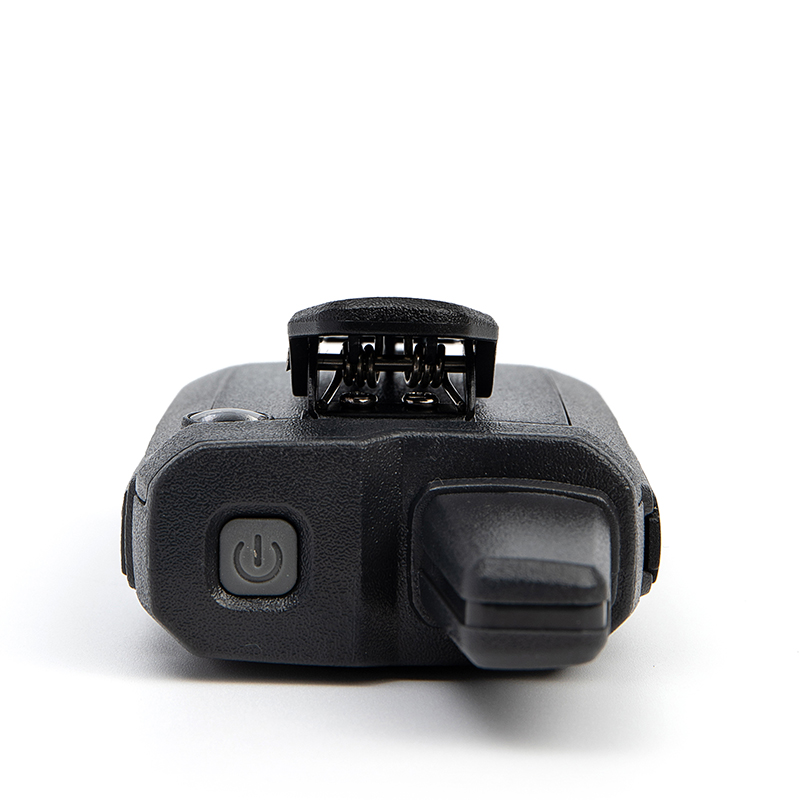

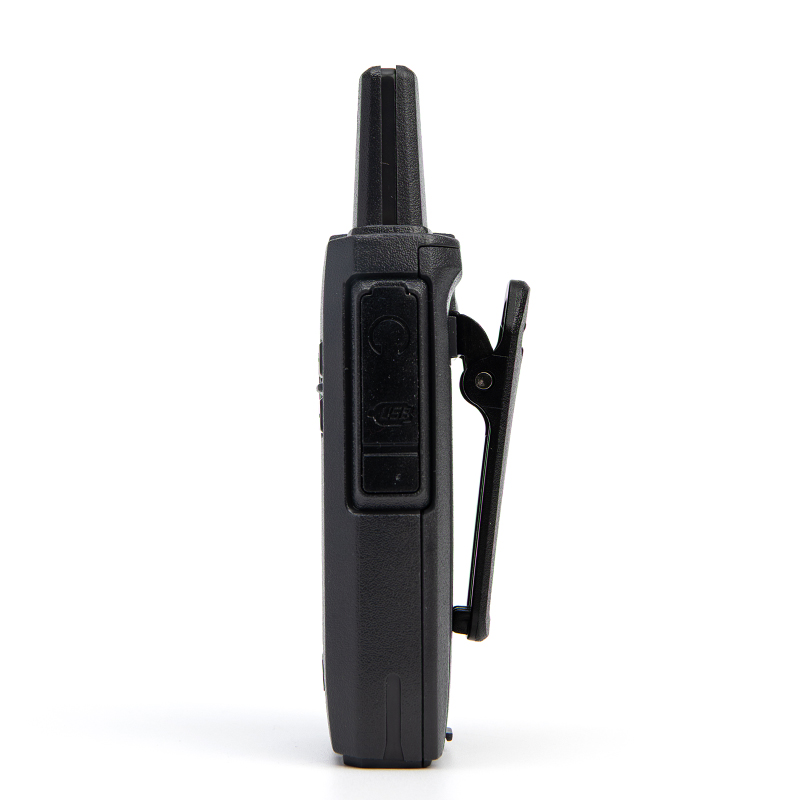

The A-201F is an ultra-lightweight analog two-way radio designed for daily business communication. Weighing only 95g and featuring Type-C charging, VOX operation and DSP encryption, it provides reliable communication for retail stores, hotels, restaurants and property management teams.
| A-201F Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | A-201F | ||
| Equipment Name | Handheld FM Walkie Talkies | ||
| Channel Capacity | 16 | ||
| Channel Spacing | 25KHz/12.5KHz | ||
| Working Voltage | DC4.2V | ||
| Frequency Range | 400-520MHz | ||
| Battery | Lithium Battery 1000mA | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 95g | ||
| Size: Length*Width*Thickness(mm) | 90*52*21(Without Antenna) | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 500mW |
| Reference Sensitivity | Better than -119dBm | SNR | ≥40dB |
| Audio Distortion | ≤5% | ||
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB |
| Audio Response | ≤+2dB & ≥-10dB | ||
| Transmitter | |||
| Transmitting Power | ≤2W | Frequency Stability | +/-2.5ppm |
| Transmitting SNR | ≥40dB | Maximum Frequency Offset | ≤5KHz |
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB |
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% |
| Main Function | |||
| Power Beep | |||
| 16 Channels | |||
| Power Saving | |||
| V0X | |||
| Scan | |||
| Low Voltage Alert | |||
| Squelch Level Setting | |||
| Key Tone Setting | |||
| End Tone Setting | |||
| Hand-tuned QT/DQT | |||
| Compandor/Scrambler/DSP Encryption | |||
| Dual Launch Keys | |||
| Flashlight | |||
| TYPE-C | |||
| Code Switch |
2 × Portable radio
2 × Li-ion battery pack
1 × usb charger
2×Belt clip
2 ×The sling
